| Item | Description |
|---|---|
| Base Material | Titanium Alloy |
| Standard Dimensions | 1000×2000 mm, 1220×2440 mm (custom sizes available) |
| Thickness Range | 0.5–2.0 mm |
| Surface Finish | Natural, Brushed, Anodized color |
| Manufacturing Process | Precision rolling, Surface oxidation |
| Fire Rating | Class A (non-combustible) |
| Environmental Rating | Long lifecycle, Highly corrosion-resistant |
| Installation Methods | Specialized mechanical fixing, Panel systems |
| Maintenance | Minimal; excellent weather resistance |

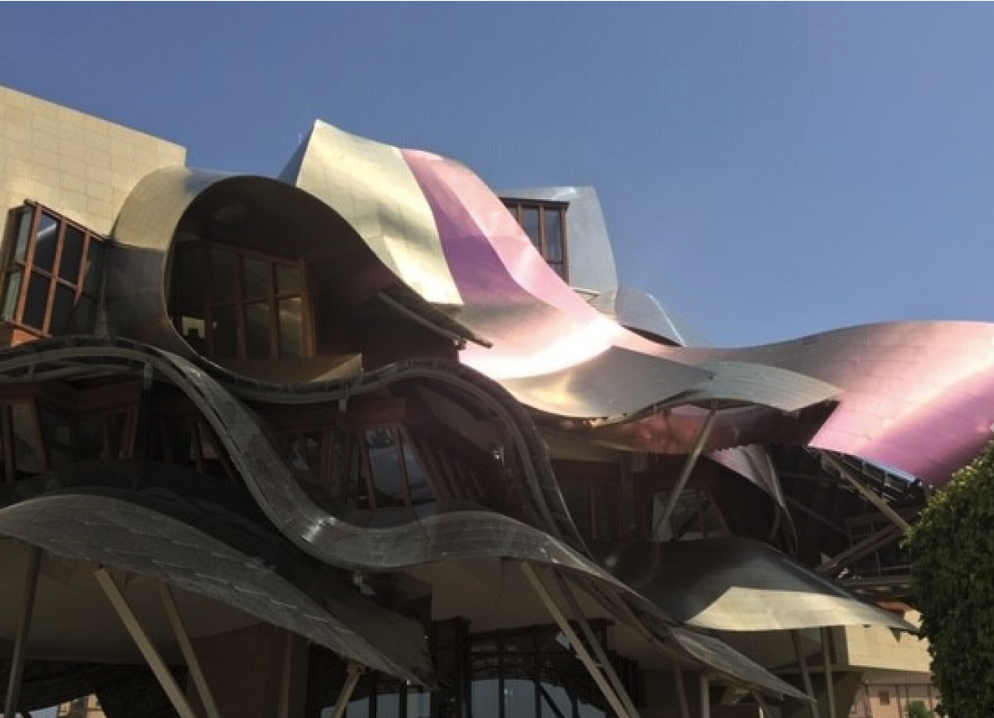

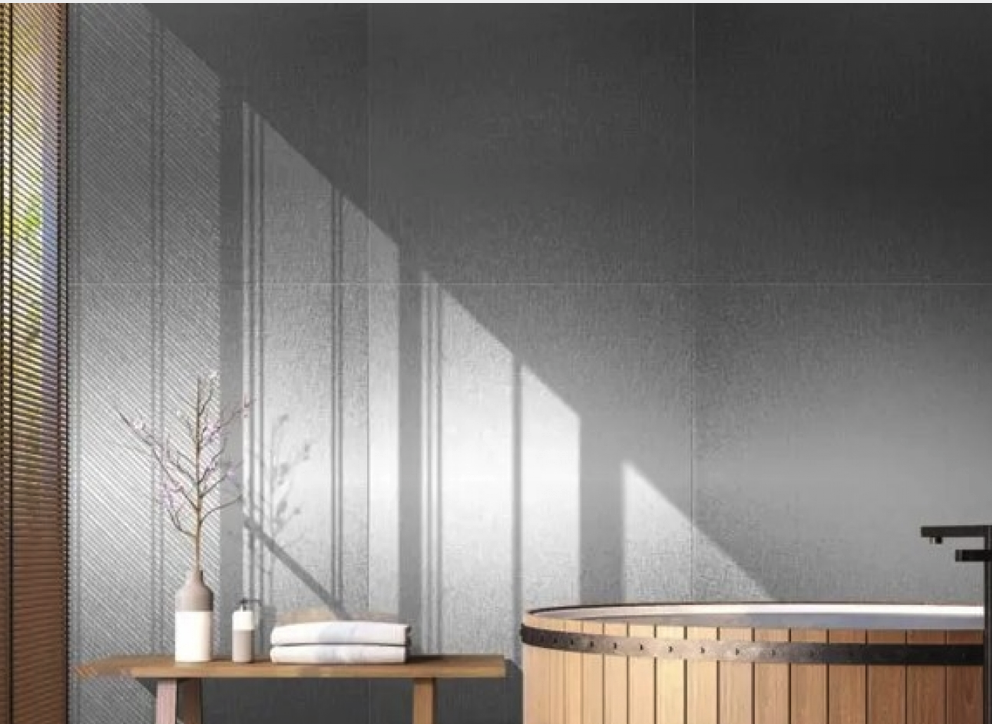

| Typical Applications | Landmark facades, High-end interiors, Art installations |
Excellent corrosion resistance
Titanium easily forms a stable oxide layer and thus has an extreme corrosion resistance over decades, it has excellent resistance to stress corrosion cracking, crevice corrosion and pitting; titanium is more resistant than copper and stainless steel. Titanium is therefore also ideally suited to environments with acid rain, ultraviolet radiation or sea water.
Titanium is a light metal
With approx. 4.5 g/cm3 titanium is 40% lighter than steel and 50% lighter than copper, so lighter structures and simpler substructures are required. It is also a metal with high specific strength.
Minimal thermal expansion
The coefficient of expansion of titanium is about half that of steel and copper and about one third of aluminium. Therefore, titanium is well suited in combination with glass and concrete. Its melting point is about 1668°C, which is higher than that of other metals. Titanium is declared as a non-combustible material.
Excellent aesthetic qualities
Titanium has an excellent surface finish and a muted silver colour. By anodic oxidation of the surface many colours and excellent colour reflections (play of colours) can be created. Depending on the viewing angle, curvature of the titanium surface, time of day and weather, different colour effects can be created by the interference of light.
Environmentally friendly and sustainable
Titanium is a harmless metal, compatible with the environment, extremely robust and very durable. It also retains its original colour for decades. Titanium is not washed away into the environment (no measurable metal runoff rate), as is the case with copper and zinc, for example. There is also no need for plastic coating for protection or colouring.
Good workability
Architectural titanium sheets can be processed using the same tools and machines as for stainless steel sheets; welding is also possible. Titanium is pliable well, but springs back slightly more than steel.

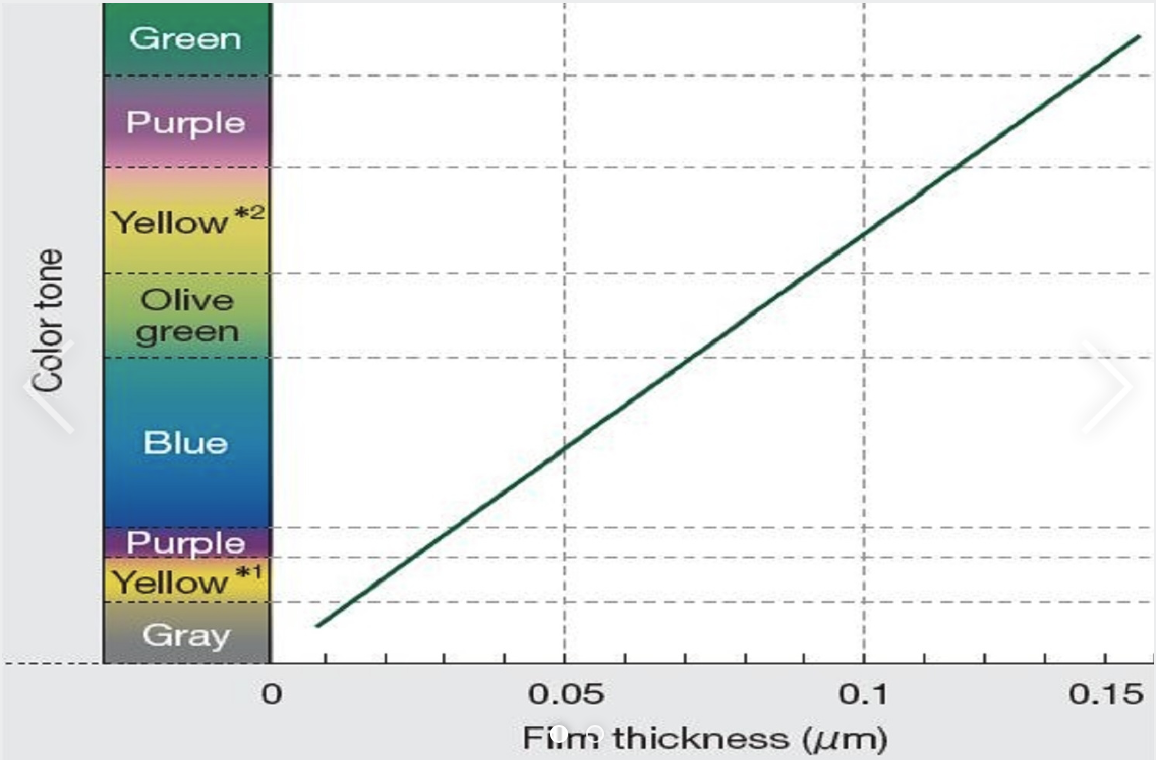

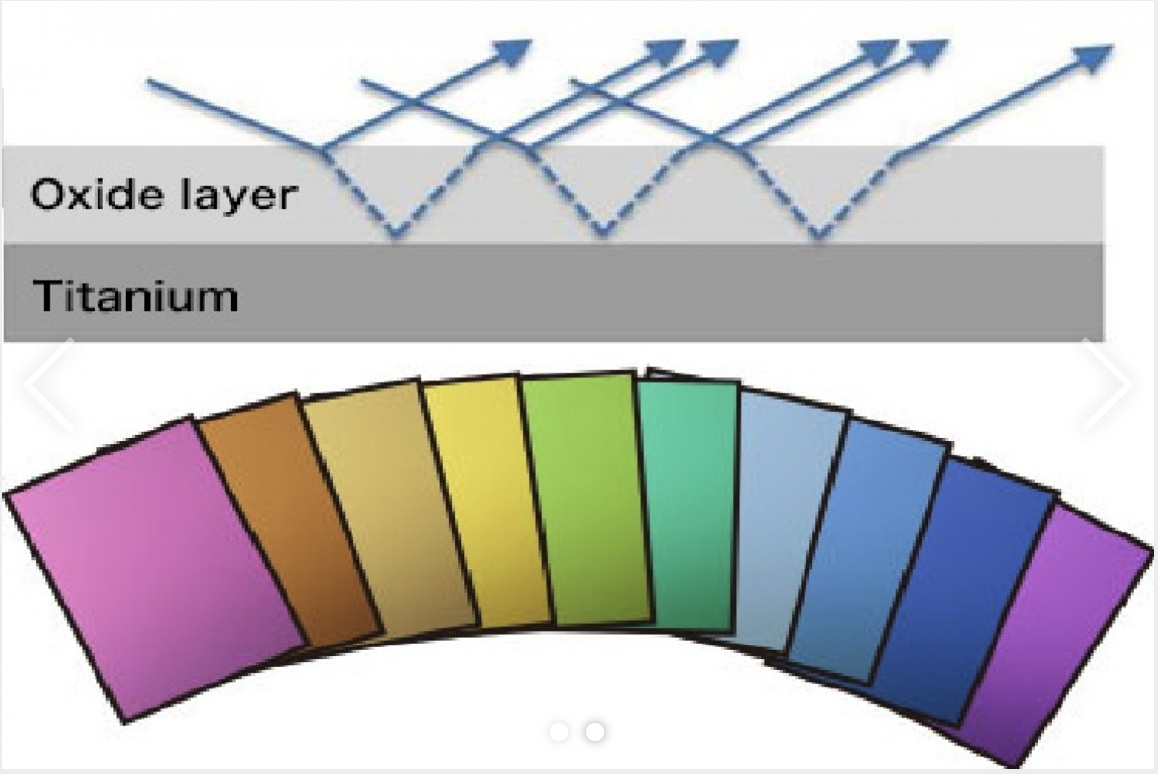

By forming a thin colorless and transparent oxide layer by the anodic oxidation method on the titanium surface, colours appear due to light interference. A wide range of colours can be created by changing the thickness of the layer. This means that no colour pigments are introduced, but the colours are created solely by light interference. Depending on sunlight and viewing angle, different colour nuances can appear. In the IP Gold line, the inherent material colour of titanium nitride is vapour-deposited (PVD process). The thickness of gold titanium nitride layer is between 0.3 and 0.6 µm.
The original colour remains for decades, discolouration is minimal.
